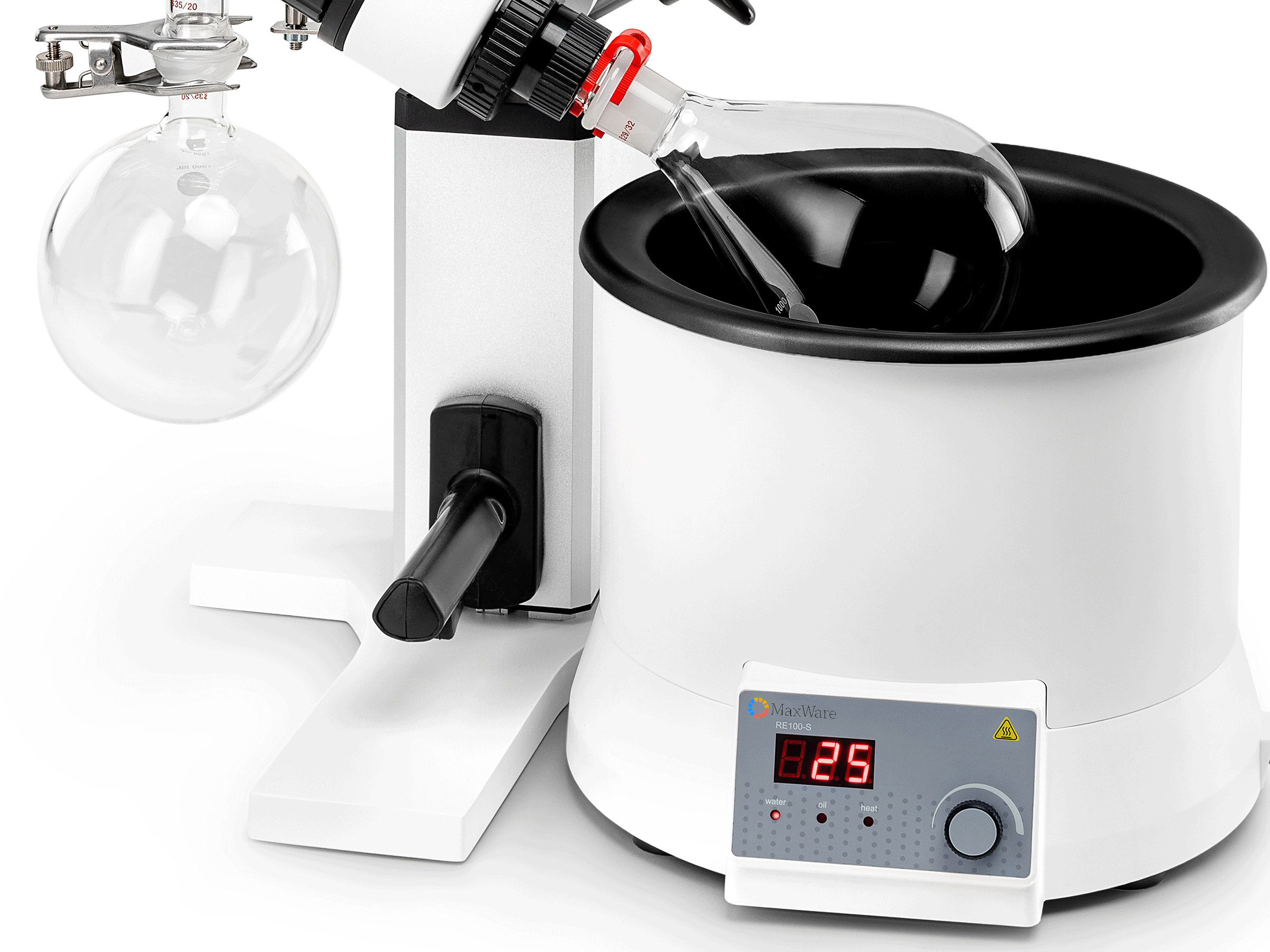

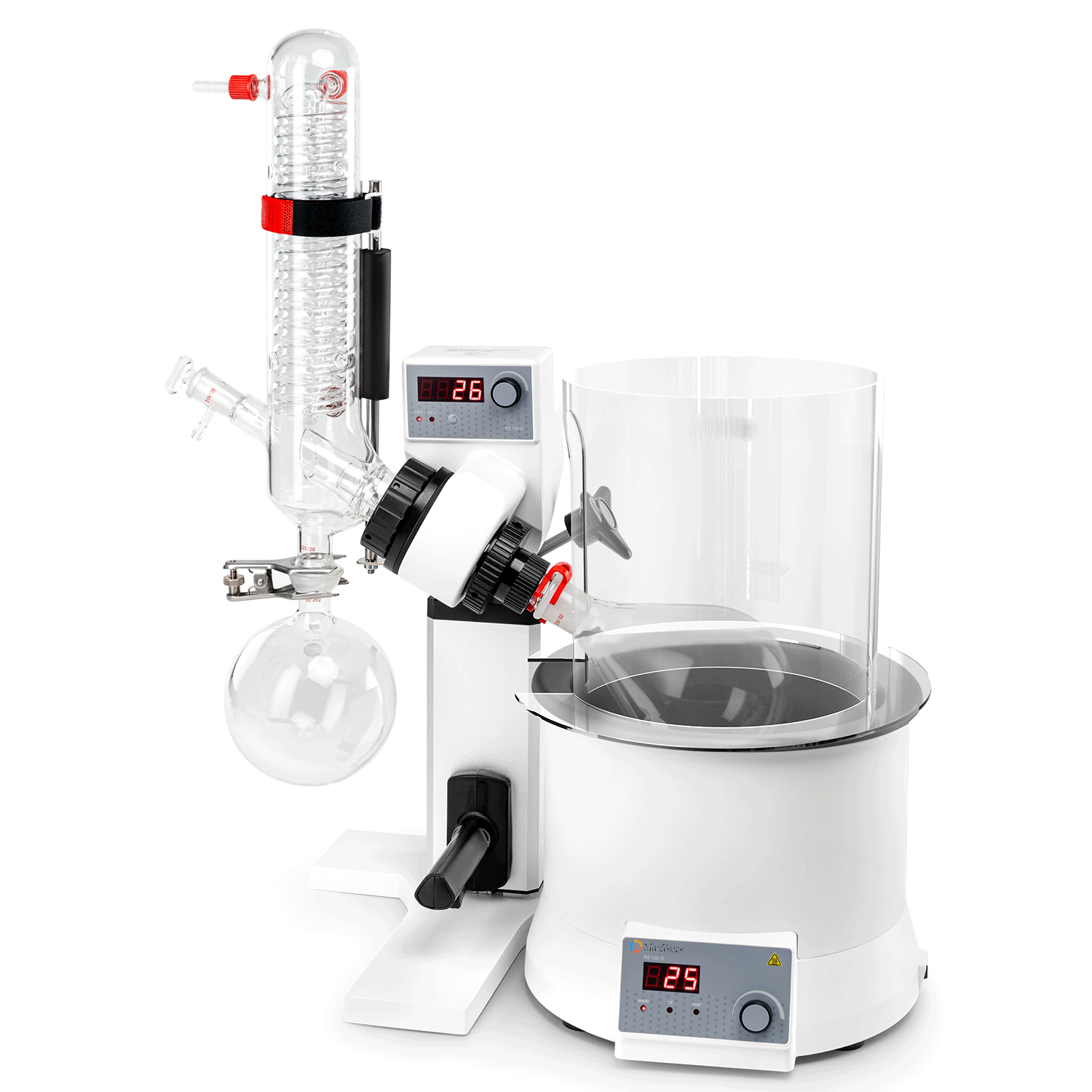

RE100-S LED Digital Rotary Evaporator

Description

• 5L heating bath with a wide temperature range (room temp.to180 °C).

Independent temperature control makes it can be used separately. Water/oil heating mode can be changed just through a switch

• Manual lift combined with auxiliary lift for precise positioning of the glassware

• PID control ensures high temperature accuracy at ±1°C (water)

• Overheating protection temperature at 220°C

• Boil-dry protection, automatically power off if heating without water/oil in the heating bath

• Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process

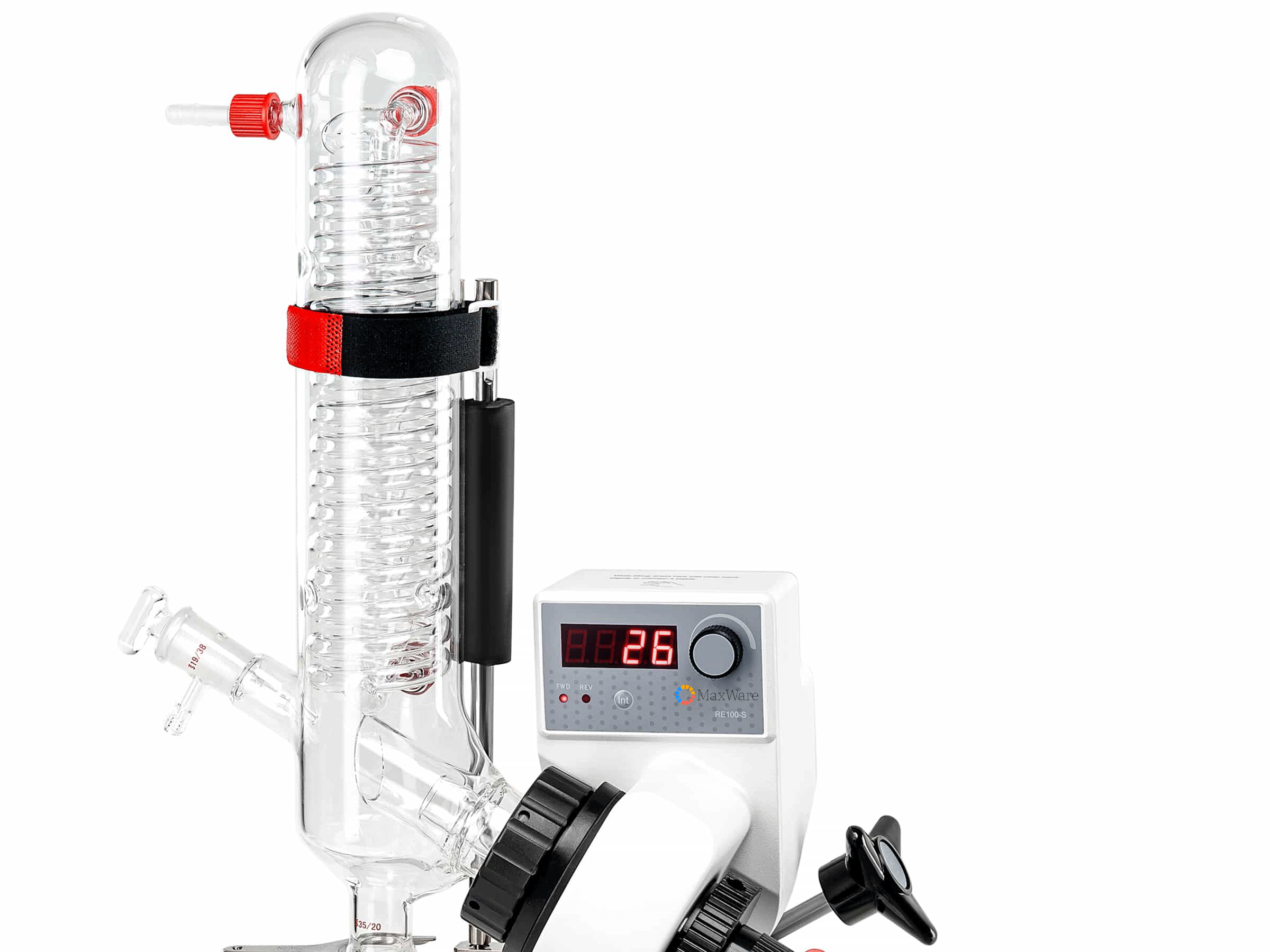

• Condenser (cooling surface 1200/1700cm2 for selection), speeding up the flow rate of liquid with excellent cooling effect

• Ejection mechanism ensures easy exchange of evaporating flask

• Adjustable immersion angle

• Double spring sealing ring which is made of PTFE provides an excellent sealing performance

• Compatible with the entire range of RE100-Pro glassware

• Optional glassware with explosion proof film available

• High temperature warning when above 50°C

Technical Specifications

Cat.No. 6030120211
Evaporating flask volume 50-3000mL
Temperature range Room temp.-180℃
Temperature control accuracy water: ±1℃ ;oil: ±3℃
Speed range 20-200rpm
Direction of Rotation Clockwise and counterclockwise
Evaporation capacity 1.56L/h
Ultimate vacuum -
Temperature control Micro processer PID control Display
Display LED
Timer Yes
Time Setting Range 1-999min
Lifting mode Manual
Lifting stroke 110mm + auxiliary 100mm
Heating bath size 300×300×240mm
Motor Type Brushless DC motor
Heating Power 1200W
Power 1245W
Voltage/Frequency 100-120/200-240V,50/60Hz
Dimension[D×W×H] Main Unit:440×320×450mm
Weight Main Unit:7kg Heating Bath:3kg
Permissible ambient temperature 5-40℃
Permissible ambient humidity ≤80% RH
Protection Class IP20
USB Interface Yes
Safety features Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.
