Description

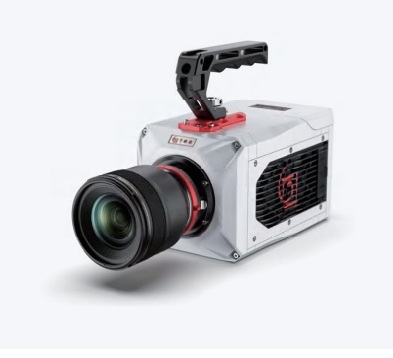

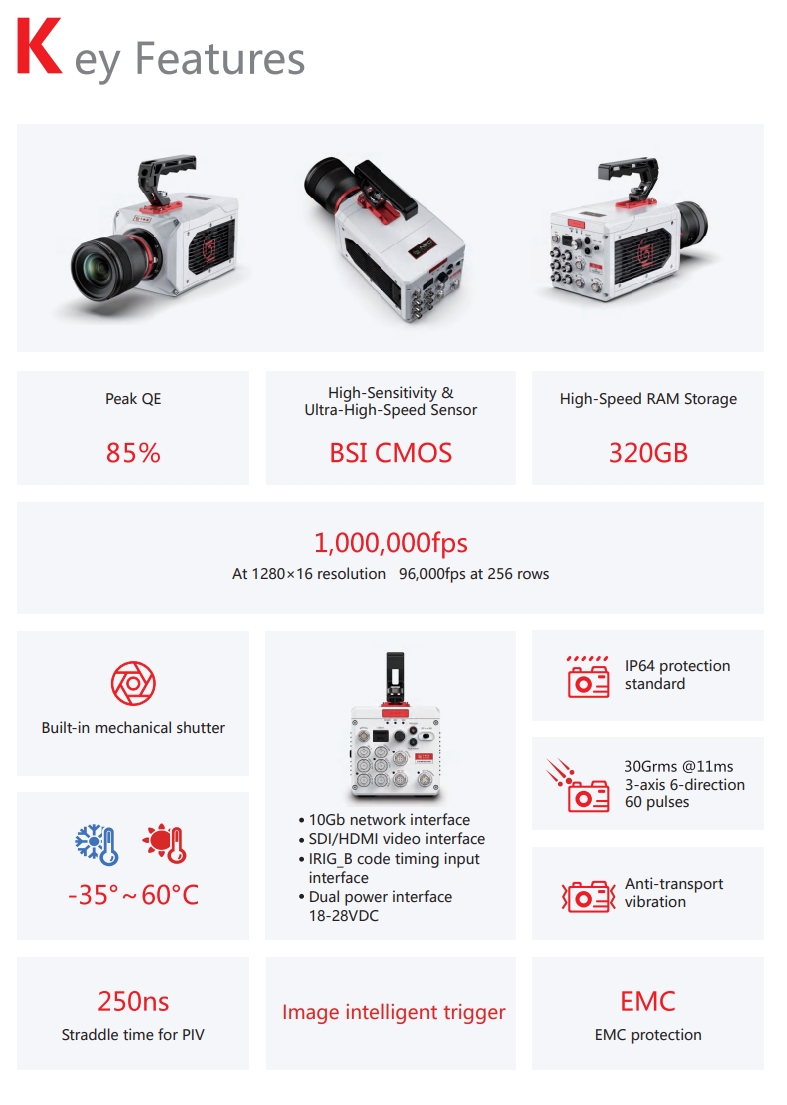

High-sensitivity & ultra-high-speed camera utilizes a new generation of backside illumination sensors to enhance the capture efficiency of incident photons, enabling transient image capture within extremely short exposure times. This is suitable for ultra-high-speed applications. Model: NEO 25M/C Sensor: BSI CMOS Max Resolution: 1280x1024 Full Frame Rate: 25000fps Shutter: Global Shutter Min Exposure Time: 150ns PIV Cross Frame: 250ns RAM: 320GB Support Auto Exposure Support EDR Support Record Button Data Interface: GigE/10GigE Video Interface: SDI Input: 3.3/5V TTL Output: 5V TTL Time Input Interface: DC IRIG B Control Interface: RS422 Reserved Trigger Input: Pulse trigger signal IO: I Output Interface Reserved, Customizable NEO 25M/C Mount: F Port, C/EF Port Options WxHxD: ≤125x125x210mm Net Weight: ≤4200g Thread: 1/4 NPT Cooling: Fan cooling High-sensitivity EDR Secondary Exposure Intelligent Image Triggering IRIG-B Synchronization Flexible Lens Mount Dual Power Supply EMC Protection Flexible for High & Low Temperature Working Environment Efficient & Easy-to-use Acquisition Software -- RCC MaxMed UAE is the leading supplier of Advanced Motion & Scientific Imaging Systems in Dubai and across the United Arab Emirates. We provide professional Advanced Motion & Scientific Imaging Systems with same-day quotes, fast delivery, installation support, and comprehensive after-sales service. Contact us at +971 55 460 2500 for expert consultation and competitive pricing.
