Description

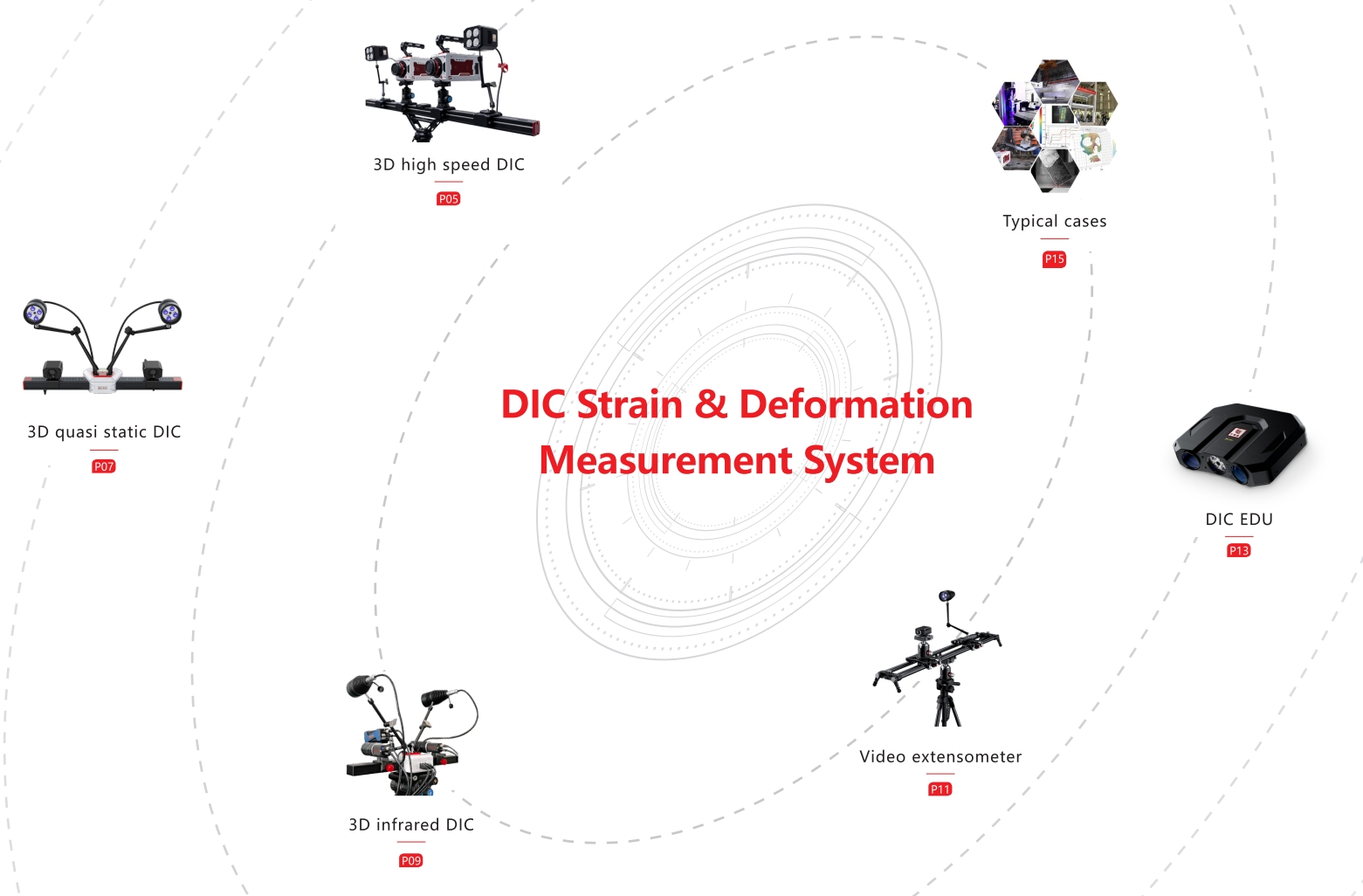

Based on non-contact optical measurement method, DIC strain measurement system measures the spatial three-dimensional coordinates of the object, displacement and strain data under load. Product Line SKU Number of Cameras Resolution Frame Rate (fps) Field of View (mm) Displacement Accuracy Strain Accuracy Strain Range Additional Features RDIC-HS RDIC-HS-S 2 1280×800 16000 50~500 ≤ 0.01pixel ≤ 100µε 0.005%~2000% - RDIC-HS-G_Pro 2 5120×4096 1000 10~1000 ≤ 0.01pixel ≤ 50µε 0.005%~2000% - RDIC-HS-M 2 1920×1080 3000/2000/1000 50~500 ≤ 0.01pixel ≤ 100µε 0.005%~2000% - RDIC-EDU RDIC-EDU - 4096×3000 @30.5fps 30.5 200×150, 100×75 5μm (in-plane), 10μm (off-plane) ≤ 50µε 0.005%~2000% Real-time image saving, tester communication RDIC-IR RDIC-IR 2 (high-res), 1 (IR) 2448×2048 (visible), 640×512 (IR) 29 (visible), 25 (IR) - 0.01pixel ≤ 50µε 0.005%~2000% Temperature range: -20°C to +550°C (1500°C optional), NETD ≤ 50mk RDIC-STD RDIC-STD-DH500 2 2448×2048 75 10~500 ≤ 0.01pixel ≤ 100µε 0.005%~2000% - RDIC-STD-DH1200 2 4096×3000 30.5 10~1000 ≤ 0.01pixel ≤ 50µε 0.005%~2000% - RDIC-STD-BM1200 2 4096×3000 29 10~1000 ≤ 0.01pixel ≤ 50µε 0.005%~2000% - RVE RVE-EDU - 1.3M 0~40 Micro~500 - - 0.005%~500% Supports Poisson's ratio, tester communication, accuracy class: ISO 9513 Class 0.5 RVE-STD - 5M 0~40 Micro~1000 - - 0.002%~1000% Supports Poisson's ratio, tester communication, accuracy class: ISO 9513 Class 0.5 RVE-PRO - 8M 0~40 Micro~1000 - - 0.001%~2000% Supports Poisson's ratio, tester communication, accuracy class: ISO 9513 Class 0.5 MaxMed UAE is the leading supplier of Advanced Motion & Scientific Imaging Systems in Dubai and across the United Arab Emirates. We provide professional Advanced Motion & Scientific Imaging Systems with same-day quotes, fast delivery, installation support, and comprehensive after-sales service. Contact us at +971 55 460 2500 for expert consultation and competitive pricing.
