Description

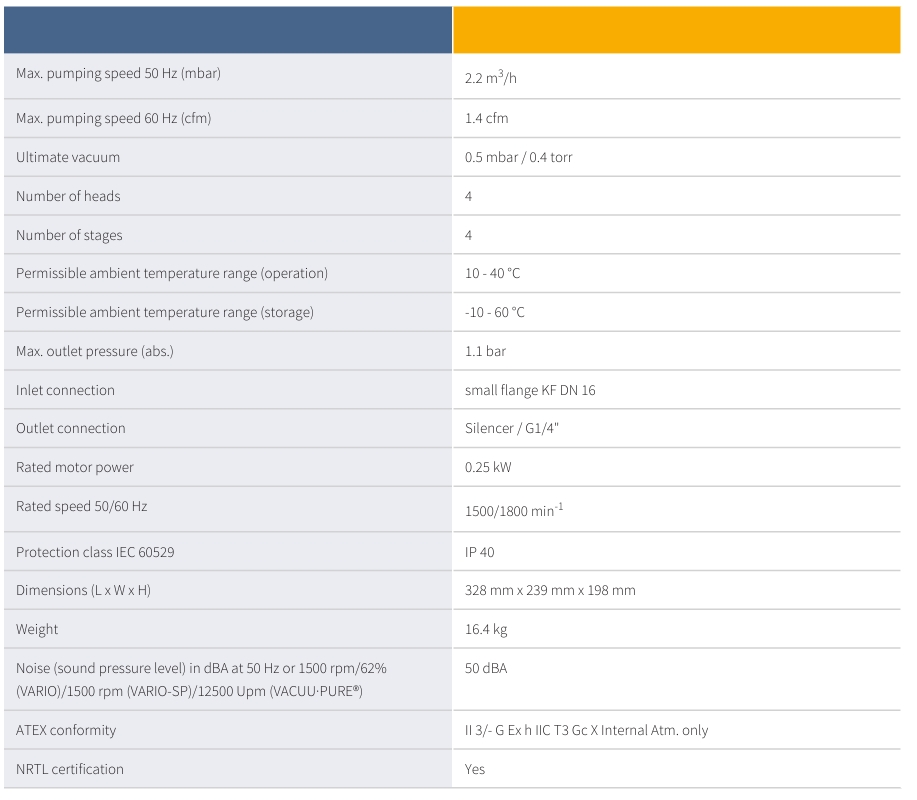

Four-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases when the need is to reach fractional millibar ultimate vacuums. All parts in contact with pumped vapors or gases are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of non-corrosive applications. The new NT-series pumps provide whisper-quiet and ultra-low-vibration operation, high leak-tightness and improved vacuum. The highly flexible, fabric-reinforced double diaphragm made of FKM offers extended operating life. MV 2 NT DIAPHRAGM PUMP Certification (NRTL): C/US 230 V / 50-60 Hz CEE mains cable Technical data Max. pumping speed 50 Hz: 2.2 m3/h Ultimate vacuum: 0.5 mbar / 0.4 torr Number of heads: 4 Number of stages: 4 Max. back pressure (abs.): 1.1 bar Inlet connection: small flange KF DN 16 Outlet connection: Silencer / G1/4" Rated motor power: 0.25 kW Rated motor speed at 50/60 Hz: 1500/1800 min-1 Protection class IEC 60529: IP 40 MaxMed UAE is the leading supplier of Pumps & Fluid Transfer Systems in Dubai and across the United Arab Emirates. We provide professional Pumps & Fluid Transfer Systems with same-day quotes, fast delivery, installation support, and comprehensive after-sales service. Contact us at +971 55 460 2500 for expert consultation and competitive pricing.
